AC Capacitor Fan: KC17238H

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Venturi : Aluminum Alloy
Insulation Resistance : 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage : AC1500V 2s
Bearing System : Ball Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature : -10C~+120C
storage Temperature : -40C~+120C
Expected Life : 75,000Hours.
Ambient Temperature : 14 F to 248 F (-10 C to +120 C)
Ambient Humidity : 0 to 75% (noncondensing)
Motor : Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC17238H

Model Rated Voltage Frequency Current Input Power Speed AirFlow Static Pressure Noise
(VAC) (Hz) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
KC17238A15HB10 115 50 0.25 28.75 2650 260 120 40
KC17238A15HB10 60 0.22 25.30 2800 280 132 43
KC17238A15HB20 115 50 0.30 34.50 2950 302 140 44
KC17238A15HB20 60 0.28 32.20 3350 340 155 46
KC17238A22HB10 1Phase220 50 0.14 30.80 2650 260 120 40
KC17238A22HB10 60 0.13 28.60 2800 280 132 43
KC17238A22HB20 1Phase220 50 0.16 35.20 2950 302 140 44
KC17238A22HB20 60 0.15 33.00 3350 340 155 46
KC17238A22HB10 3Phase220 50 0.13 28.60 2650 260 120 40
KC17238A22HB10 60 0.11 24.20 2800 280 132 43
KC17238A22HB20 3Phase220 50 0.15 33.00 2950 302 140 44
KC17238A22HB20 60 0.12 26.40 3350 340 155 46
KC17238A38HB10 1Phase380 50 0.07 26.60 2650 260 120 40
KC17238A38HB10 60 0.06 22.80 2800 280 132 43
KC17238A38HB20 1Phase380 50 0.08 30.40 2950 302 140 44
KC17238A38HB20 60 0.07 26.60 3350 340 155 46
KC17238A38HB10 3Phase380 50 0.06 22.80 2650 260 120 40
KC17238A38HB10 60 0.05 19.00 2800 280 132 43
KC17238A38HB20 3Phase380 50 0.08 30.40 2950 302 140 44
KC17238A38HB20 60 0.06 22.80 3350 340 155 46
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

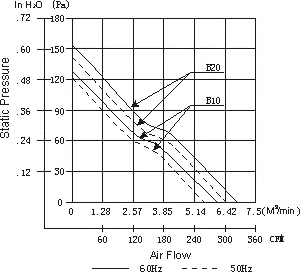

MECHANICAL DRAWINGS   CHARACTERISTIC CURVES
