AC Capacitor Fan: KC17238M

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Venturi : Aluminum Alloy
Insulation Resistance : 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage : AC1500V 2s
Bearing System : Ball Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature : -10C~+120C
storage Temperature : -40C~+120C
Expected Life : 75,000Hours.
Ambient Temperature : 14 F to 248 F (-10 C to +120 C)
Ambient Humidity : 0 to 75% (noncondensing)
Motor : Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC17238M

Model Rated Voltage Frequency Current Input Power Speed AirFlow Static Pressure Noise
(VAC) (Hz) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
KC17238A15MB10 115 50 0.25 28.75 2650 225 90 40
KC17238A15MB10 60 0.22 25.30 2800 250 97 43
KC17238A15MB20 115 50 0.30 34.50 2950 265 110 45
KC17238A15MB20 60 0.28 32.20 3350 290 120 48
KC17238A22MB10 1Phase220 50 0.14 30.80 2650 225 90 40
KC17238A22MB10 60 0.13 28.60 2800 250 97 43
KC17238A22MB20 1Phase220 50 0.16 35.20 2950 265 110 45
KC17238A22MB20 60 0.15 33.00 3350 290 120 48
KC17238A22MB10 3Phase220 50 0.13 28.60 2650 225 90 40
KC17238A22MB10 60 0.11 24.20 2800 250 97 43
KC17238A22MB20 3Phase220 50 0.15 33.00 2950 265 110 45
KC17238A22MB20 60 0.12 26.40 3350 290 120 48
KC17238A38MB10 1Phase380 50 0.07 26.60 2650 225 90 40
KC17238A38MB10 60 0.06 22.80 2800 250 97 43
KC17238A38MB20 1Phase380 50 0.08 30.40 2950 265 110 45
KC17238A38MB20 60 0.07 26.60 3350 290 120 48
KC17238A38MB10 3Phase380 50 0.06 22.80 2650 225 90 40
KC17238A38MB10 60 0.05 19.00 2800 250 97 43
KC17238A38MB20 3Phase380 50 0.08 30.40 2950 265 110 45
KC17238A38MB20 60 0.06 22.80 3350 290 120 48
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

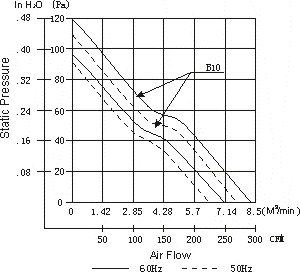

MECHANICAL DRAWINGS   CHARACTERISTIC CURVES
