AC Capacitor Fan: KC17251M

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Venturi : Aluminum Alloy
Insulation Resistance : 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage : AC1500V 2s
Bearing System : Ball Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature : -10C~+120C
storage Temperature : -40C~+120C
Expected Life : 75,000Hours.
Ambient Temperature : 14 F to 248 F (-10 C to +120 C)
Ambient Humidity : 0 to 75% (noncondensing)
Motor : Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC17251M

Model Rated Voltage Frequency Current Input Power Speed AirFlow Static Pressure Noise
(VAC) (Hz) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
KC17251A15MB10 115 50 0.25 28.75 2650 280 122 44
KC17251A15MB10 60 0.22 25.30 2800 315 132 46
KC17251A15MB20 115 50 0.30 34.50 2950 340 148 48
KC17251A15MB20 60 0.28 32.20 3350 360 172 51
KC17251A22MB10 1Phase220 50 0.13 28.60 2650 280 122 44
KC17251A22MB10 60 0.12 26.40 2800 315 132 46
KC17251A22MB20 1Phase220 50 0.15 33.00 2950 340 148 48
KC17251A22MB20 60 0.14 30.80 3350 360 172 51
KC17251A22MB10 3Phase220 50 0.13 28.60 2650 280 122 44
KC17251A22MB10 60 0.11 24.20 2800 315 132 46
KC17251A22MB20 3Phase220 50 0.15 33.00 2950 340 148 48
KC17251A22MB20 60 0.12 26.40 3350 360 172 51
KC17251A38MB10 1Phase380 50 0.07 26.60 2650 280 122 44
KC17251A38MB10 60 0.06 22.80 2800 315 132 46
KC17251A38MB20 1Phase380 50 0.08 30.40 2950 340 148 48
KC17251A38MB20 60 0.07 26.60 3350 360 172 51
KC17251A38MB10 3Phase380 50 0.06 22.80 2650 280 122 44
KC17251A38MB10 60 0.05 19.00 2800 315 132 46
KC17251A38MB20 3Phase380 50 0.08 30.40 2950 340 148 48
KC17251A38MB20 60 0.06 22.80 3350 360 172 51
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

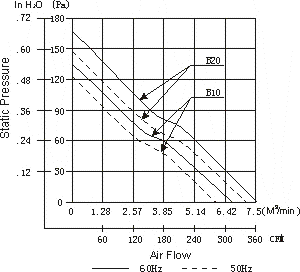

MECHANICAL DRAWINGS   CHARACTERISTIC CURVES
