AC Capacitor Fan: KC18066

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Venturi : Aluminum Alloy
Insulation Resistance : 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage : AC1500V 2s
Bearing System : Ball Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature : -10C~+120C
storage Temperature : -40C~+120C
Expected Life : 75,000Hours.
Ambient Temperature : 14 F to 248 F (-10 C to +120 C)
Ambient Humidity : 0 to 75% (noncondensing)
Motor : Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC18066

Model Rated Voltage Frequency Current Input Power Speed AirFlow Static Pressure Noise
(VAC) (Hz) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
KC18066A15B10 115 50 0.50 57.50 2650 430 215 50
KC18066A15B10 60 0.48 55.20 2800 475 240 55
KC18066A15B20 115 50 0.55 63.25 2950 490 260 60
KC18066A15B20 60 0.52 59.80 3350 530 280 64
KC18066A22B10 1Phase220 50 0.28 61.60 2650 430 215 50
KC18066A22B10 60 0.26 57.20 2800 475 240 55
KC18066A22B20 1Phase220 50 0.33 72.60 2950 490 260 60
KC18066A22B20 60 0.31 68.20 3350 530 280 64
KC18066A22B10 3Phase220 50 0.25 55.00 2650 430 215 50
KC18066A22B10 60 0.23 50.60 2800 475 240 55
KC18066A22B20 3Phase220 50 0.28 61.60 2950 490 260 60
KC18066A22B20 60 0.26 57.20 3350 530 280 64
KC18066A38B10 1Phase380 50 0.18 68.40 2650 430 215 50
KC18066A38B10 60 0.15 57.00 2800 475 240 55
KC18066A38B20 1Phase380 50 0.20 76.00 2950 490 260 60
KC18066A38B20 60 0.18 68.40 3350 530 280 64
KC18066A38B10 3Phase380 50 0.15 57.00 2650 430 215 50
KC18066A38B10 60 0.14 53.20 2800 475 240 55
KC18066A38B20 3Phase380 50 0.18 68.40 2950 490 260 60
KC18066A38B20 60 0.17 64.60 3350 530 280 64
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

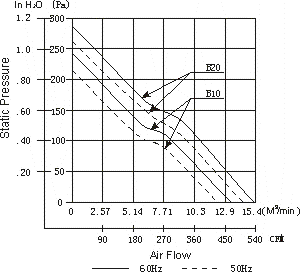

MECHANICAL DRAWINGS   CHARACTERISTIC CURVES

COPYRIGHT © 2002-2004 BESTFLOW MOTOR  CO.,LTD. ALL RIGHTS RESERVED.
January.2002Year
